The DR1P5 series offers 1.5 watts of output power with low output ripple and noise, high efficiency, and 500VDC isolation voltage. These products are particularly suitable for telecommunications, industrial, mobile telecom, and test equipment applications.

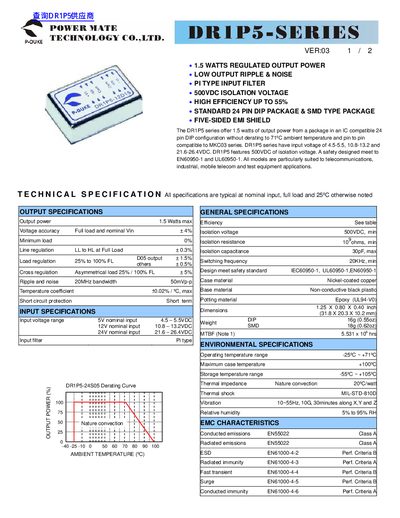

The Power Mate Technology DRIP5-Series is a 1.5-watt regulated output power supply designed in an IC-compatible 24-pin DIP or SMD package. It features low output ripple and noise, a PI type input filter, and high efficiency up to 55%.
This series offers multiple input voltage ranges (nominal 5V, 12V, and 24V) with various output configurations including single and dual outputs. The devices meet safety standards IEC60950-1, UL60950-1, and EN60950-1.
| Output Power | 1.5 Watts max |
|---|---|
| Isolation Voltage | 500VDC, min |
| Operating Temperature Range | -25°C ~ +71°C |
| Switching Frequency | 20KHz, min |
| Input Voltage Range (Nominal 5V) | 4.5-5.5VDC |
The DRIP5 series offers a maximum output power of 1.5 Watts.
Yes, it includes short circuit protection for short-term operation.
