The PT3100 series is a 24V input to 5V, 12V, and 15V output isolated DC-DC converter that uses high switching frequencies, planar magnetics, and surface mount construction. It features small size, high power density, and high efficiency. It is designed for telecom, industrial, computer, medical, and other distributed power applications that require input-to-output isolation.

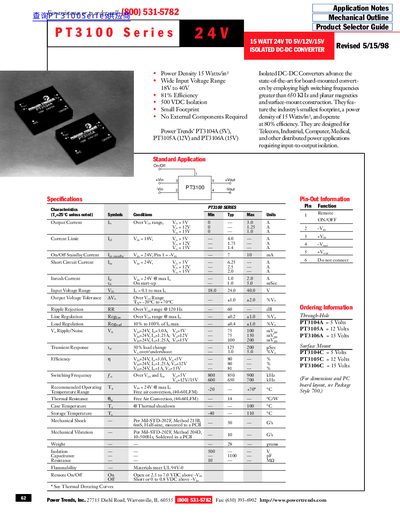

This document is a product selector guide and datasheet for the Power Trends PT3100 Series of isolated DC-DC converters. The series includes models PT3104A, PT3105A, and PT3106A, providing output voltages of 5V, 12V, and 15V respectively from an input range of 18V to 40V.
| Power Density | 15 Watts/in* |
|---|---|
| Efficiency | >650 KHz switching frequency, >80% efficiency |
| Output Voltage Tolerance | +/- 10% |
| Ripple Rejection | >60 dB |
| Switching Frequency (5V) | 800 to 900 kHz |
| Weight | 28 grams |
The series includes models with 5V, 12V, and 15V outputs.
No, these converters do not require any external components.
