This document is a product description for the B45196P and B45198P tantalum capacitors. It introduces the features of the capacitors, such as operating temperature, reliability, and application scenarios.

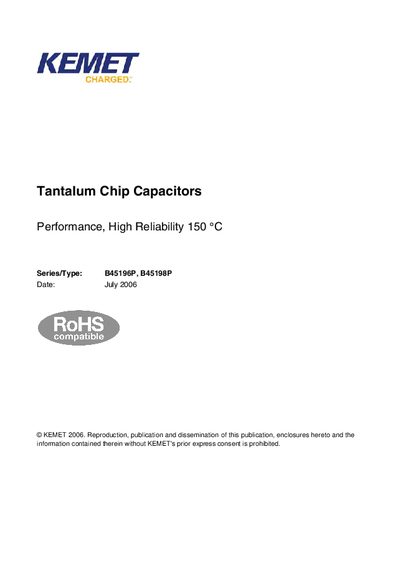

This document provides technical specifications and ordering codes for the KEMET Tantalum Chip Capacitor series B45196P (tinned terminals) and B45198P (gold-plated terminals). These components feature a conventional TaMnO2 technology with flame-retardant plastic cases, designed for high reliability in demanding environments up to 150 °C.
The datasheet details dimensional drawings, marking conventions including voltage and capacitance coding, and specific technical data such as maximum impedance, leakage current, and service life. It also outlines applications ranging from automotive electronics to telecommunications and provides guidelines for low-resistance applications and storage conditions.
| Operating temperature range | -55... +150 °C |
|---|---|
| Rated voltage (up to 85 °C) | 6.3... 50 VDC |
| Rated capacitance range | 0.47 ... 150 LF |
| Capacitance tolerance options | +20%, +10% |
| Service life | >500000 h |
The document covers series B45196P with tinned terminals and B45198P with gold-plated terminals.
The capacitors are rated for an operating temperature up to 150 °C.
Yes, they are lead-free and material content compatible with ELV and RoHS.
