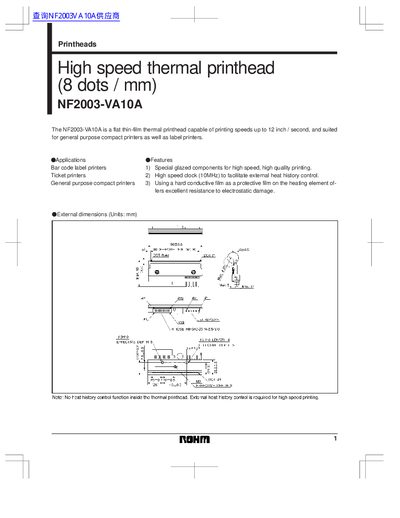

The NF2003-VA10A is a flat thin-film thermal printhead capable of printing speeds up to 12 inch / second, and suited for general purpose compact printers as well as label printers.
The document describes the NF2003-VA10A as a flat thin-film thermal printhead designed for general purpose compact printers and label printers. It features a printing speed of up to 12 inches per second and utilizes special glazed components for high-quality output.
Key specifications include an effective print width of 80 mm, a dot pitch of 0.125 mm, and a maximum clock frequency of 10 MHz. The datasheet provides detailed pin assignments, timing charts, equivalent circuits, and electrical characteristic curves to assist in design integration.
| Effective printing width | 80 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 640 dots |
| Average resistance value | 550 Q |
| Applied voltage | 24 Vv |
| Maximum clock frequency | 10 MHz |
| Operating temperature | 5~45, Cc |
The NF2003-VA10A is capable of printing speeds up to 12 inch/ second.
No, there is no heat history control function inside; external control is required for high speed printing.
