74VHCT00A is a high-speed CMOS 2-Input NAND Gate fabricated with silicon gate CMOS technology by Fairchild Semiconductor Corporation. It achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.

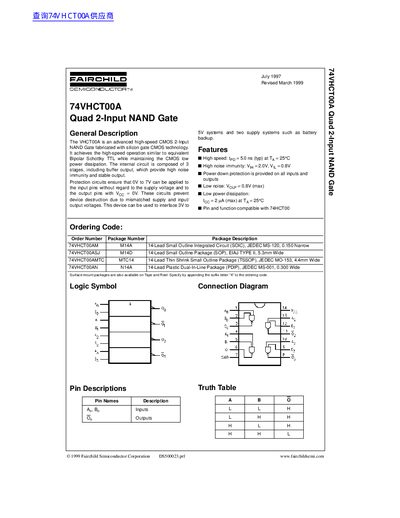

This document is a technical datasheet for the Fairchild Semiconductor 74VHCT00A, an advanced high-speed CMOS 2-Input NAND gate. The device achieves high-speed operation similar to Bipolar Schottky TTL while maintaining low power dissipation and includes protection circuits for input/output voltages up to 7V.
| Propagation Delay (Typ) | 5.0 ns |
|---|---|
| Supply Voltage Range | 4.5V to 5.5V |
| Operating Temperature | -40°C to +85°C |
| Input Leakage Current (Max) | ±1.0 µA |
The absolute maximum rating for the supply voltage (Vcc) is +7.0V.
