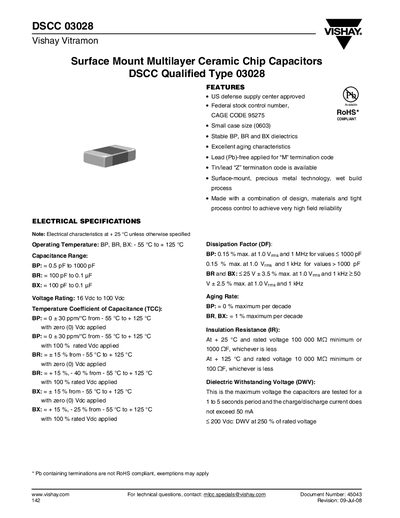

DSCC 03028 Vishay Vitramon Surface Mount Multilayer Ceramic Chip Capacitors DSCC Qualified Type 03028 FEATURES include US defense supply center approved, Federal stock control number, CAGE CODE 95275, small case size (0603), stable BP, BR and BX dielectrics, excellent aging characteristics, lead (Pb)-free applied for “M” termination code, Tin/lead “Z” termination code is available, surface-mount, precious metal technology, wet build process, made with a combination of design, materials and tight process control to achieve very high field reliability.
The document provides technical data for Vishay Vitramon Surface Mount Multilayer Ceramic Chip Capacitors, specifically the DSCC Qualified Type 03028. It covers three dielectric styles (BP, BR, and BX) with operating temperatures ranging from -55°C to +125°C.
| Operating Temperature Range | -55 °C to +125°C |
|---|---|
| Package Size (EIA) | 0603 |
| Insulation Resistance (IR) | 100,000 MΩ minimum |
The capacitance range for BP is from 0.5 pF to 1000 pF.
The capacitors have voltage ratings from 16 Vdc to 100 Vdc.
