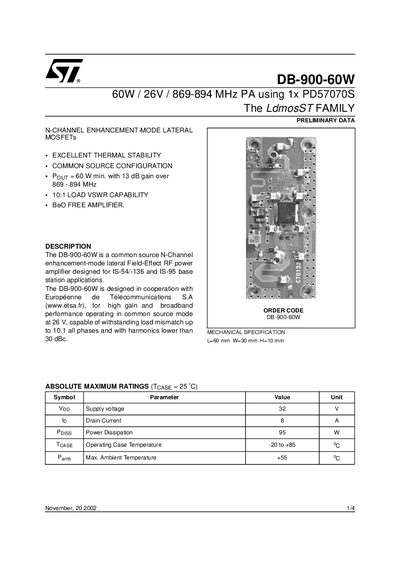

The DB-900-60W is a common source N-Channel enhancement-mode lateral Field-Effect RF power amplifier designed for IS-54/-136 and IS-95 base station applications. The DB-900-60W is designed in cooperation with Européenne de Télécommunications S.A (www.etsa.fr), for high gain and broadband performance operating in common source mode at 26 V, capable of withstanding load mismatch up to 10:1 all phases and with harmonics lower than 30 dBc.
The DB-900-60W is a common source N-Channel enhancement-mode lateral Field-Effect RF power amplifier designed for IS-54/-136 and IS-95 base station applications. It operates in the 869 - 894 MHz frequency range with a supply voltage of 26 V.
| Frequency Range | 869 - 894 MHz |
|---|---|
| Output Power (Pout) | 60 W min. |
| Gain | 13 dB typ. |
| Supply Voltage (Vop) | 26 V |
| Load Mismatch Capability | 10:1 |
