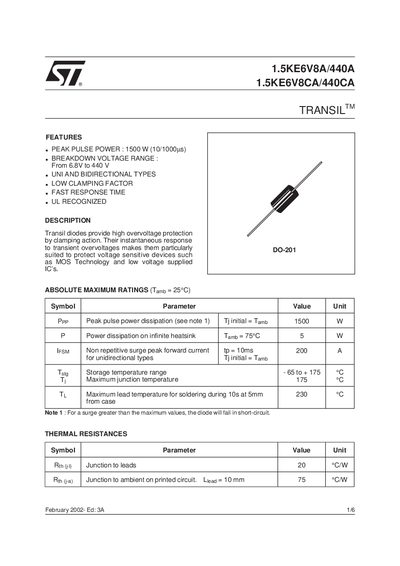

ST 1.5KE6V8A/440A 1.5KE6V8CA/440CA TRANSIL handbook

1.5KE6V8A/440A 1.5KE6V8CA/440CA TRANSILTM is a bidirectional silicon diode with low clamping factor and fast response time.

Brand: STMicroelectronics
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 213 KB
Published: 05 June, 2012
Updated: 01 October, 2023
Models: 5KE6V8A, 5KE6V8CA, 440CA
MD5 checksum: AC762DFD74EF4345D807EFC35393C3B1
PDF: ST 1.5KE6V8A/440A 1.5KE6V8CA/440CA TRANSIL handbook PDF

About this manual

This document is a technical datasheet for the STMicroelectronics 1.5KE series of Transil diodes, covering model numbers from 1.5KE6V8A to 1.5KE440CA. These devices are designed for high overvoltage protection by clamping action and feature fast response times suitable for protecting voltage-sensitive devices like MOS technology and low-voltage ICs.

What's inside

Features
Absolute Maximum Ratings
Thermal Resistances
Electrical Characteristics
Peak Pulse Power Dissipation
Clamping Voltage vs Peak Pulse Current
Capacitance Characteristics
Transient Thermal Impedance

Specifications

Peak Pulse Power Dissipation	1500 W (10/1000µs)
Breakdown Voltage Range	6.8V to 440 V
Package Type	DO-201 (Plastic)
Maximum Junction Temperature	175 °C

Frequently asked questions

What are the types available in this series?

The series includes both unidirectional and bidirectional types.

Are these diodes UL recognized?

Yes, the Transil diodes are UL recognized.
