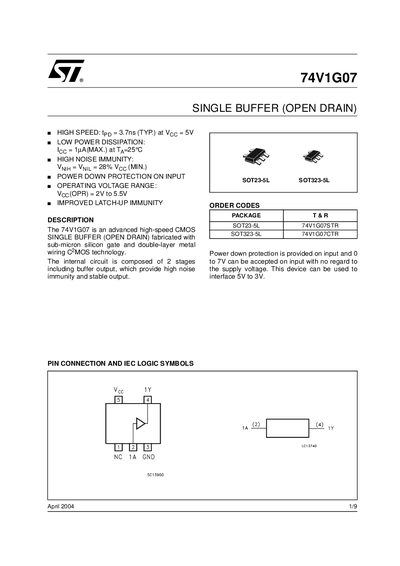

The 74V1G07 is an advanced high-speed CMOS SINGLE BUFFER (OPEN DRAIN) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.
This document is a technical datasheet for the STMicroelectronics 74V1G07, an advanced high-speed CMOS Single Buffer with Open Drain output. The device features sub-micron silicon gate technology, providing high noise immunity and stable operation across a wide voltage range of 2V to 5.5V.
The datasheet details the internal circuit structure, pin connections, truth tables, and absolute maximum ratings. It includes comprehensive DC and AC electrical specifications for various operating temperatures, as well as capacitive characteristics and mechanical dimensions for SOT23-5L, SOT323-5L, and Tape & Reel packages.
| Operating Voltage Range | 2V to 5.5V |
|---|---|
| Supply Voltage (Max) | +7.0 Vv |
| Operating Temperature Range | -55 to 125 °C |
| Propagation Delay (Typ) | 3.7ns |
The typical propagation delay is 3.7ns at a supply voltage of 5V.
