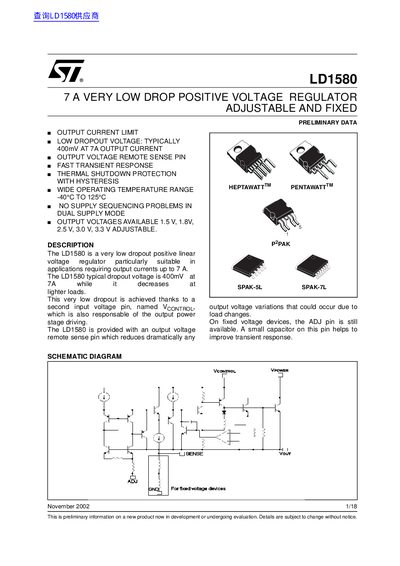

The LD1580 is a very low dropout positive linear voltage regulator particularly suitable for applications requiring output currents up to 7A. It features low dropout voltage, fast transient response, thermal shutdown protection, etc.
The LD1580 is a very low dropout (LDO) positive linear voltage regulator designed for applications requiring high output currents up to 7 A. It features a typical dropout voltage of 400 mV at full load, achieved through a unique Vcontrol pin that drives the power stage. The device includes built-in protection mechanisms such as output current limiting and thermal shutdown with hysteresis.
| Output Current | 7 A |
|---|---|
| Typical Dropout Voltage | 400 mV at 7A |
| Operating Temperature Range | -40°C to +125°C |
| Available Output Voltages | 1.5 V, 1.8V, 2.5 V, 3.0 V, 3.3 V Adjustable |
| Shutdown Temperature Threshold | 170°C |
The typical dropout voltage is 400 mV at an output current of 7 A.
Yes, it features thermal shutdown protection with hysteresis to prevent excessive heating.
