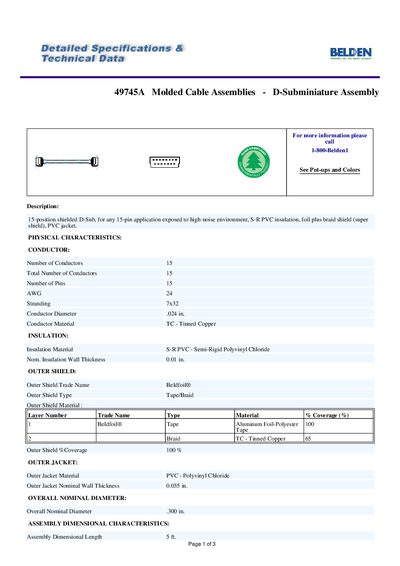

This document describes the Molded Cable Assemblies - D-Subminiature Assembly 49745A, which is suitable for any 15-pin application exposed to a high-noise environment. It features a 15-position shielded D-Sub connector, S-R PVC insulation, foil plus braid shield (super shield), and a PVC jacket. The physical characteristics include 15 conductors with 24 AWG stranded tinned copper, S-R PVC insulation with a nominal wall thickness of 0.01 in, Beldfoil® tape/aluminum foil-polyester tape and tinned copper braid outer shield with 100% coverage, PVC outer jacket with a nominal wall thickness of 0.035 in, and an overall nominal diameter of 0.300 in.
This document provides detailed technical specifications for the Belden 49745A Molded Cable Assemblies, a 15-position shielded D-Sub connector designed for high-noise environments. The assembly features S-R PVC insulation, a foil plus braid outer shield (Beldfoil), and a PVC jacket with an overall nominal diameter of .300 inches.
| Outer Shield Type | Tape/Braid |
|---|---|
| Assembly Dimensional Length | 5 ft. |
| Connector Gender (First End) | Male |
| Connector Gender (Second End) | Female |
| Overmold Color | Chrome |
| UL Temperature Rating | 80°C |
| Max. Operating Voltage | 300 V RMS |
Yes, it is EU RoHS Compliant.
It has a foil plus braid shield described as super shield.
