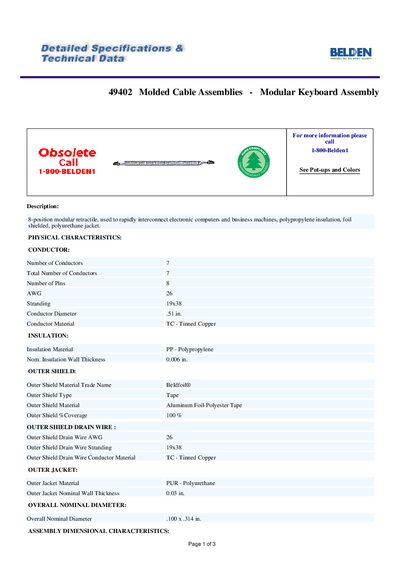

This document describes an 8-position modular retractile keyboard assembly used for rapid interconnection of electronic computers and business machines. It features polypropylene insulation, foil shielding, and a polyurethane jacket.
The Belden 49402 is an 8‑position modular retractable cable assembly designed for rapid interconnection of electronic computers and business machines. It features polypropylene insulation, a foil‑shielded polyurethane jacket, and a longitudinal aluminum/polyester shield for ESD and EMI protection.
Technical data includes a maximum operating voltage of UL 30 V, a UL temperature rating of 60 °C, and compliance with AWM Specification, EU RoHS, and other environmental regulations. Detailed wiring color codes, connector characteristics, and dimensional specifications are provided for easy installation without tools.
| Max Operating Voltage | UL 30 V |
|---|---|
| UL Temperature Rating | 60 °C |
The maximum operating voltage is UL 30 V (UL AWM Style 20197).
It has an 8‑position modular retractable connector.
The cable is rated for 60 °C (UL AWM Style 20197).
The wiring color code chart lists Brown for 1, Red for 2, Orange for 3, Yellow for 4, Green for 5, Blue for 6, Purple for 7, and Drain Wire for 8.
