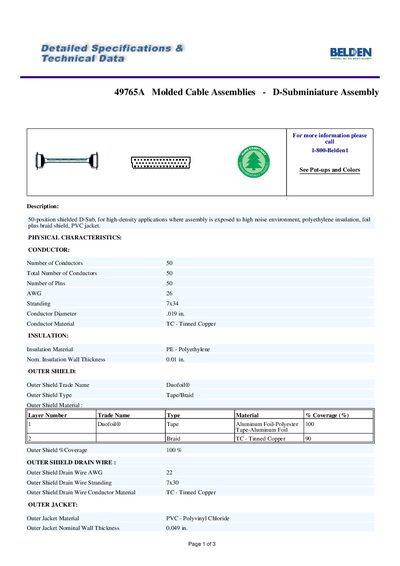

This document provides detailed information about 49765A Molded Cable Assemblies - D-Subminiature Assembly, including physical properties, outer shield, outer shield wire, outer insulation, overall nominal diameter, assembly dimensional characteristics, connector characteristics, etc.
The Belden 49765A is a molded cable assembly featuring a 50‑position shielded D‑Sub connector designed for high‑density, high‑noise environments. It uses polyethylene insulation, a foil‑plus‑braid outer shield, and a PVC jacket.
The assembly provides UL‑rated temperature performance up to 80 °C, complies with EU RoHS, and is not plenum rated. Both ends are D‑Sub connectors (male first end, female second end) with overmolded PVC and chrome hardware, and wiring is point‑to‑point with shield tied to the connector shells.
| Overall Nominal Diameter | .535 in. |
|---|---|
| Max Operating Voltage | 30 V RMS (UL AWM Style 2919) |
| UL Temperature Rating | 80 °C (UL AWM Style 2919) |
| EU RoHS Compliant | Yes |
| Plenum Rated | No |
No, the cable is not plenum rated.
The cable is rated for 80 °C according to UL AWM Style 2919.
