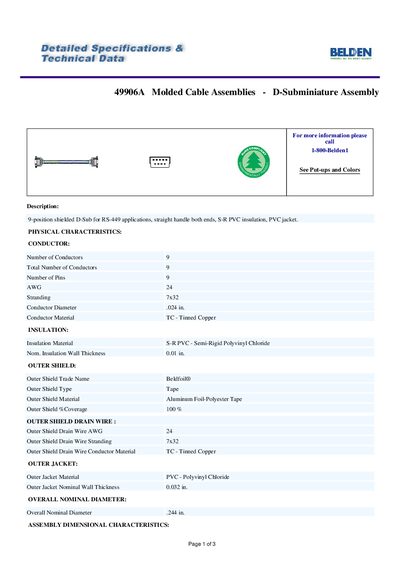

This is a document about D-Subminiature connectors, which describes a 9-position shielded D-Sub connector for RS-449 applications. The connector features straight handles at both ends, S-R PVC insulation, and PVC jacket.
The 49906A is a molded cable assembly featuring a 9‑position shielded D‑Sub connector for RS‑449 use. Both ends have straight handles, semi‑rigid PVC insulation, and a PVC jacket. The assembly includes a 100 % shielded molded handle to aid FCC compliance and EMI/RFI protection.
The product complies with UL AWM Style 2464 (300 V, 80 °C) and EU RoHS regulations. It is not plenum‑rated, and its electrical rating is UL 300 V RMS. Detailed dimensions, connector characteristics, and material specifications are provided for design and integration.
| Conductor Material | TC - Tinned Copper |
|---|---|
| Insulation Material | S‑R PVC - Semi‑Rigid Polyvinyl Chloride |
| Outer Shield Trade Name | Beldfoil® Tape |
| Outer Shield Material | Aluminum Foil‑Polyester Tape |
| Assembly Length | 10 ft. |
| Maximum Operating Voltage | UL 300 V RMS |
| UL Temperature Rating | 80 °C |
| Plenum Rated | No |
| EU RoHS Compliant | Yes |
The maximum operating voltage is UL 300 V RMS.
No, the assembly is not plenum rated.
