This product is a 9-pin D-Subminiature connector with a retractable cable, which can be used for keyboard and CRT connection.

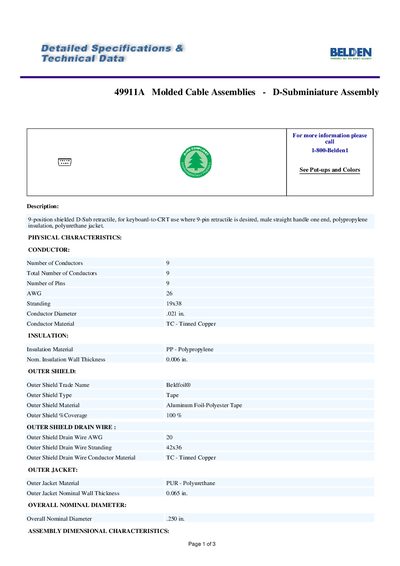

This handbook describes the 9‑position shielded D‑Sub retractable cable assembly (model 49911A) intended for keyboard‑to‑CRT connections. It includes physical, electrical, and mechanical characteristics, connector details, and wiring color codes.
Key data include conductor material (tinned copper), insulation (polypropylene), outer jacket (polyurethane), overall diameter (0.250 in.), maximum operating voltage (30 V RMS), UL temperature rating (60 °C), and compliance with UL AWM Style 20197 and EU RoHS.
| Number of Conductors | 9 |
|---|---|
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PP - Polypropylene |
| Outer Jacket Material | PUR - Polyurethane |
| Max Operating Voltage | 30 V RMS |
| UL Temperature Rating | 60°C |
| EU RoHS Compliant | Yes |
The maximum operating voltage is 30 V RMS according to UL AWM Style 20197.
Yes, the cable is EU RoHS compliant.
The outer jacket is made of polyurethane.
The D‑Sub connector has 9 positions.
