49153A Molded Cable Assemblies - DIN Cable Assembly is a 5-position shielded DIN, used where a shielded conductor is desired and as a low cost alternative to a D-Sub, PVC insulation, foil plus braid shield, straight handle, PVC jacket.
The Belden 49153A is a 5‑position shielded DIN molded cable assembly designed as a low‑cost alternative to a D‑Sub. It features PVC insulation, a foil‑plus‑braid outer shield (Beldfoil®), and a PVC jacket.

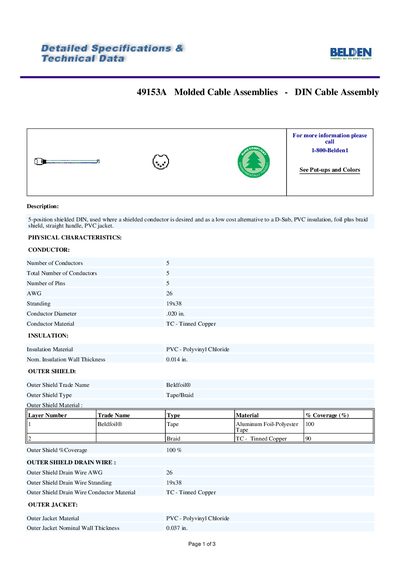

The document provides detailed physical, electrical, and mechanical characteristics, including conductor details, outer shield composition, connector options, wiring color codes, UL temperature rating, and compliance information such as EU RoHS and UL flame test results.
| Outer Shield Trade Name | Beldfoil® |
|---|---|
| Outer Shield Coverage | 100 % |
| Overall Nominal Diameter | .231 in. |
| UL Temperature Rating | 80 °C (UL AWM Style 2464) |
| Max Operating Voltage | 300 V RMS (UL AWM Style 2464) |
| EU RoHS Compliant | Yes |
| UL Flame Test | VW‑1 |
The cable is rated for 80 °C according to UL AWM Style 2464.
Yes, the product is EU RoHS compliant.
