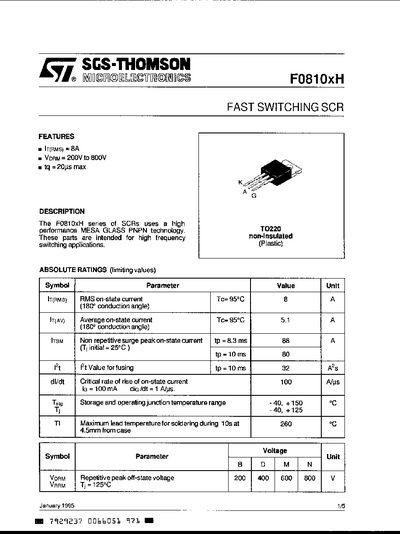

This document provides technical specifications and characteristics for the F0810xH series of Fast Switching Silicon Controlled Rectifiers (SCRs). These components utilize a high-performance MESA GLASS PNPN technology, specifically designed for high-frequency non-insulated switching applications. The datasheet details absolute ratings, electrical characteristics including sensitivity and gate parameters, thermal resistances, and ordering information.
| RMS on-state current (Tj=95°C) | 8 A |
|---|---|
| Average on-state current (Tj=95°C) | 5.1 A |
| Non repetitive surge peak on-state current | 88 A |
| Critical rate of rise of on-state current | 100 A/us |
| Storage and operating junction temperature range | - 40, +150 °C |
| Package type | T0220 Non-insulated (Plastic) |
These parts are intended for high frequency non-insulated switching applications.
The series uses a high performance MESA GLASS PNPN technology.
The maximum lead temperature for soldering during 10s at 4.5mm from case is 260 °C.
