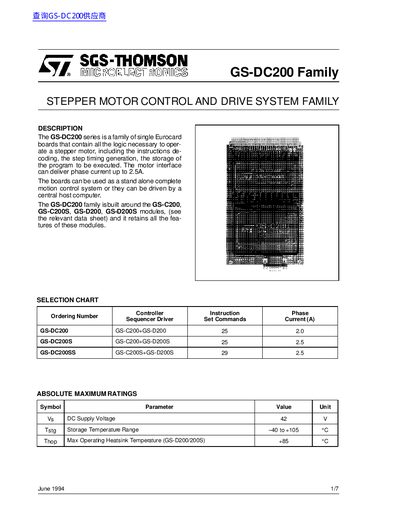

The GS-DC200 series is a family of single Eurocard boards that contain all the logic necessary to operate a stepper motor, including the instructions decoding, the step timing generation, the storage of the program to be executed. The motor interface can deliver phase current up to 2.5A. The boards can be used as a stand alone complete motion control system or they can be driven by a central host computer. The GS-DC200 family isbuilt around the GS-C200, GS-C200S, GS-D200, GS-D200S modules, (see the relevant data sheet) and it retains all the features of these modules.
The GS-DC200 series is a family of single Eurocard boards designed to operate stepper motors. The system includes logic for instruction decoding, step timing generation, and program storage, with a motor interface capable of delivering phase current up to 2.5A.
These boards can function as a standalone complete motion control system or be driven by a central host computer. The family is built around the GS-C200, GS-C200S, GS-D200, and GS-D200S modules.
| Phase Current (Max) | Up to 2.5A |
|---|---|
| DC Supply Voltage Range | 12 V to 40 V |
| Quiescent Supply Current | 150 mA |
| Logic Input Voltage (High) | 2 V to 5 V |
| Speed Range | 10 to 10000 steps |
| Baud Rate Range | 110 to 9600 |
| Positioning Range (GS-DC200/S) | 0 to 9999999 steps |
| Program Storage Capability | 119 Bytes |
The maximum operating heatsink temperature for the GS-D200/2008 modules is +85 °C.
Yes, the boards can be used as a stand alone complete motion control system.
The recommended operating maximum supply voltage must not exceed 40V to avoid permanent damage.
