The ICS7151 is a clock generator produced by ICST company. It can be used for EMI (Electro Magnetic Interference) reduction. The product has 3.3V ±0.3 V voltage, 8-pin SOIC package, Pb (lead) free package. The input frequency range is 16.5 to 33.4 MHz, and the output frequency range is 8.3 to 16.7 MHz, 16.5 to 33.4 MHz, 33.3 to 66.7 MHz, 66.6 to 133.4 MHz. The product supports ±0.5%, ±1.5% center spread, -1.0%, -3.0% down spread, and x1/2, x1, x2, x4 multiplication rates.
The ICS7151 is a spread‑spectrum clock generator designed to reduce EMI by modulating the oscillator frequency. It supports multiple multiplication ratios (x1/2, x1, x2, x4) and offers selectable center‑spread and down‑spread profiles.

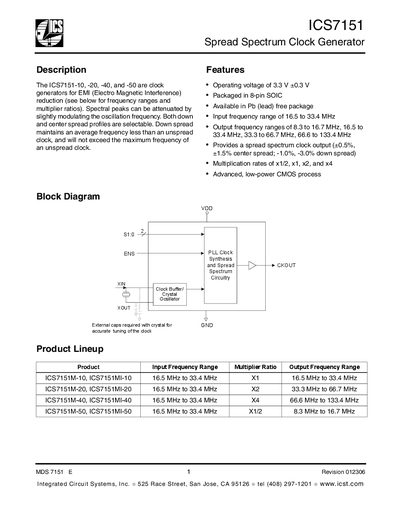

The document provides a description of features, pin assignments, required external components, absolute maximum ratings, DC and AC electrical characteristics, thermal data, package dimensions, and ordering information for the 8‑pin SOIC version of the device.
| Operating voltage | 3.3 V ±0.3 V |
|---|---|
| Input frequency range | 16.5 MHz to 33.4 MHz |
| Output frequency ranges | 8.3‑16.7 MHz, 16.5‑33.4 MHz, 33.3‑66.7 MHz, 66.6‑133.4 MHz |
| Multiplication rates | x1/2, x1, x2, x4 |
| Package type | 8‑pin SOIC |
| Supply current (IDD) | 10‑20 mA (no load, 3.3 V) |
A 0.01 µF decoupling capacitor must be connected between GND and VDD on pin 7, placed as close to the pin as possible.
The device offers +0.5 % and +1.5 % center‑spread, as well as –1.0 % and –3.0 % down‑spread profiles.
