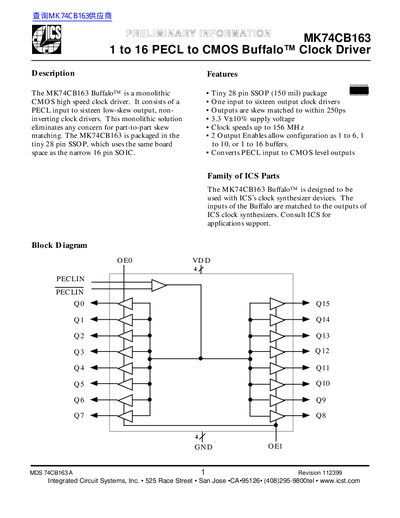

The MK74CB163 is a monolithic CMOS high speed clock driver. It consists of a PECL input to sixteen low-skew output, non-inverting clock drivers. This monolithic solution eliminates any concern for part-to-part skew matching. It is packaged in the tiny 28 pin SSOP, which uses the same board space as the narrow 16 pin SOIC.
The MK74CB163 Buffalo is a monolithic CMOS high-speed clock driver designed to convert a single PECL input into sixteen low-skew, non-inverting CMOS outputs. This solution eliminates part-to-part skew matching concerns and is packaged in a 28-pin SSOP that fits the same board space as a 16-pin SOIC.
The device features two output enables, allowing it to be configured as a 1-to-6, 1-to-10, or 1-to-16 buffer. It operates with a 3.3V supply voltage and supports clock speeds up to 156 MHz, with outputs skew matched to within 250ps.
| Supply Voltage | 3.0 to 3.6 V |
|---|---|
| Maximum Clock Frequency | 156 MHz |
| Output Skew | 250 ps |
| Package Type | 28 pin SSOP |
| Operating Temperature | 0 to 70 °C |
The device provides sixteen low-skew output, non-inverting clock drivers.
The device requires a 3.3V supply voltage with a tolerance of +/- 10%.
Yes, the two output enables allow configuration as 1-to-6, 1-to-10, or 1-to-16 buffers.
