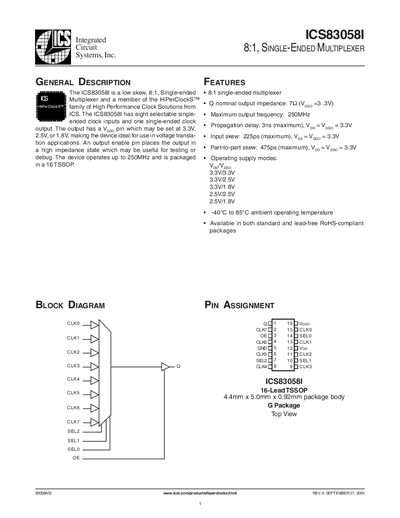

This document is an English introduction document about ICS83058I. The product is a low skew, 8:1, single-ended multiplexer, which can be used in voltage translation applications.
The ICS83058I is an 8:1 single-ended multiplexer and a member of the HiPerClockS family from Integrated Circuit Systems. It features eight selectable clock inputs and one output, designed for low skew applications up to 250MHz.
A key feature is its VOOO pin, which allows the output voltage level to be set at 3.3V, 2.5V, or 1.8V, making it ideal for voltage translation. The device includes an output enable pin for high impedance states and operates within a -40°C to 85°C ambient temperature range.
| Maximum output frequency | 250MHz |
|---|---|
| Maximum propagation delay | 3ns |
| Input skew (max) | 225ps |
| Part-to-part skew (max) | 475ps |
The device operates up to a maximum output frequency of 250MHz.
The device operates within an ambient temperature range of -40°C to 85°C.
