Featured ICS manuals

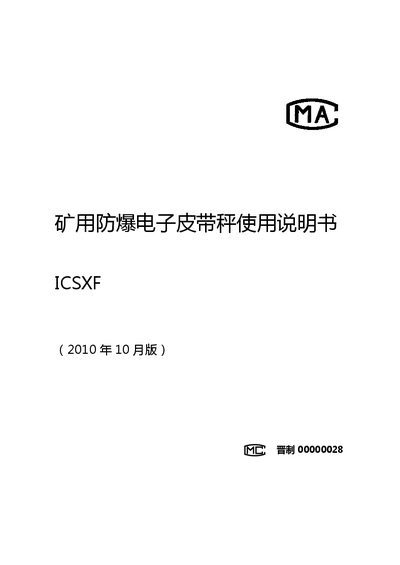

ICS XF Mining Explosion-Proof Electronic Belt Scale User Manual

User Manual 28 pages · 1.1 MB · ZH

The ICS‑XF mining belt scale is an explosion‑proof, intrinsically safe device designed for underground coal‑mine environments. It consists of a weight‑sensor‑based scale frame, speed sensor, power supply, communication modules and a display controller, with underground components powered by a KDW127/5 explosion‑proof power unit and surface components linked via coaxial line protectors.

The manual covers system overview, technical specifications, wiring diagrams, installation, commissioning, and maintenance procedures, as well as safety standards and environmental operating limits for both surface and underground installations. This manual is written in Chinese.

Covers: Overview · Technical Specifications · System Functions and Wiring Diagrams · Installation and Commissioning · Maintenance and Care · Appendices

Latest ICS manuals

• ICS XF Mining Explosion-Proof Electronic Belt Scale User Manual

  User Manual 28 pages · 1.1 MB · ZH

  User manual for the ICS‑XF explosion‑proof electronic belt scale used in underground coal mines.

• ICS ICS9148-11 DATA SHEET

  This document is a product specification manual, which mainly introduces the characteristics of the product, such as operating frequency and clock frequency.

• ICS MK74CB163 PECL to CMOS Buffalo Clock Driver

  The MK74CB163 is a monolithic CMOS high speed clock driver. It consists of a PECL input to sixteen low-skew output, non-inverting clock drivers. This monolithic solution eliminates any concern for part-to-part skew matching. It is packaged in the tiny 28 pin SSOP, which uses the same board space as the narrow 16 pin SOIC.

• ICS ICS95V847 2.5V Wide Range Frequency Clock Driver

  The ICS95V847 is a low skew, low jitter PLL clock driver that provides 1 to 5 differential clock distribution with feedback pins for input to output synchronization. It is suitable for zero delay board fan out and SO-DIMM applications, providing a complete DDR registered DIMM solution.

• ICS ICS8422002I-01 FEMTOCLOCKS CRYSTAL-TOLVHSTL FREQUENCY SYNTHESIZER

  ICS8422002I-01 is a 2-output LVHSTL frequency synthesizer optimized to generate Ethernet reference clock frequencies. Using a 25MHz 18pF parallel resonant crystal, the following frequencies can be generated based on the 2 frequency select pins (F_SEL[1:0]): 156.25MHz, 125MHz and 62.5MHz. The ICS8422002I-01 uses ICS' 3rd generation low phase noise VCO technology and can achieve 1ps or lower typical rms phase jitter, easily meeting Ethernet jitter requirements. The ICS8422002I-01 is packaged in a small 20-pin TSSOP package.

• ICS ICS2309 3.3 VOLT ZERO DELAY LOW SKEW BUFFER

  The ICS2309 is a low phase noise, high-speed PLL based, low-skew zero delay buffer. Based on ICS' proprietary low jitter Phase Locked Loop (PLL) techniques, the device provides eight low skew outputs at speeds up to 133 MHz at 3.3 V. The outputs can be generated from the PLL (for zero delay), or directly from the input (for testing), and can be set to tri-state mode or to stop at a low level. The PLL feedback is on-chip and is obtained from the CLKOUT pad. The ICS2309 is available in two different versions. The ICS2309-1 is the base part. The ICS2309-1H is a high drive version with faster rise and fall times.

• ICS ICS97ULP844A DATA SHEET

  The ICS97ULP844A is a 1.8V low-power wide-range frequency clock driver that can be used for DDR2 memory modules or zero delay board fan out. It features a low skew, low jitter PLL clock driver, 1 to 4 differential clock distribution (SSTL_18), feedback pins for input to output synchronization, spread spectrum tolerant inputs, and auto PD when input signal is at a certain logic state.

• ICS ICS8431-21 DATA SHEET

  ICS8431-21 is a clock frequency synthesizer from ICS, suitable for IA64/32 applications, with a frequency range of 250MHz to 700MHz and an output frequency range of 62.5MHz to 350MHz. The output frequency can be programmed using the parallel interface M0 to M8 to the configuration logic and the output divider control pin DIV_SEL. Spread spectrum clocking is programmed via the control inputs SSC_CTL0 and SSC_CTL1. The ICS8431-21's programmable features support four operational modes: spread spectrum clock (SSC), non-spread spectrum clock, and two test modes controlled by the SSC_CTL[1:0] pins. Unlike other synthesizers, the ICS8431-21 can immediately change spread-spectrum operation without having to reset the device. In SSC mode, the output clock is modulated in order to achieve a reduction in EMI. In one of the PLL bypass test modes, the PLL is disconnected as the source to the differential output allowing an external source to be connected to the TEST_I/O pin. This is useful for in-circuit testing and allows the differential output to be driven at a lower frequency throughout the system clock tree.

• ICS ICS9248-99 DATA SHEET

  ICS9248-99 is a clock generator chip produced by Integrated Circuit Systems, Inc. It supports 2-48MHz, 2.5V, 3.3V multiple voltage and frequency outputs, and the highest supports 200.4MHz frequency.

• ICS MK1449B handbook

  The MK1449B is an integrated circuit that can be used for fast Ethernet and SCSI on computer motherboards, or for AC97 sound on computer motherboards. It has features such as low synthesis error, input crystal frequency of 14.31818 MHz, operating voltages of 3.0 to 5.5V, etc. Ideal for oscillator replacement.

• ICS ICS853561

  The ICS85356I 2:1, Differential-to-3.3V Dual LVPECL / ECL Clock Multiplexer is a high speed differential multiplexer. The device can be configured as a 2:1 multiplexer. Dual 3.3V LVPECL outputs. Selectable differential CLKxx, nCLKxx inputs. CLKxx, nCLKxx pair can accept the following input types: LVPECL, LVDS, LVHSTL, SSTL and HCSL. The ICS85356I can therefore be used as a differential translator to translate almost any differential input type to LVPECL. It can also be used in ECL mode by setting VCC=0V and VEE to -3.0V to - 3.8V. The ICS85356I adds negligible jitter to the input clock and can operate at high frequencies in excess of 900MHz thus making it ideal for use in demanding applications such as SONET, Fibre Channel, 1 Gigabit/10 Gigabit Ethernet.

• ICS ICS952802 handbook

• ICS ICS83058I handbook

  This document is an English introduction document about ICS83058I. The product is a low skew, 8:1, single-ended multiplexer, which can be used in voltage translation applications.

• ICS ENSORS 2501/2511

• ICS ICS9248-98 handbook

  ICS9248-98 is a frequency generator produced by Integrated Circuit Systems, Inc. It supports 2.5V CPUs and has an output frequency of up to 166MHz. It supports PCI, CPU stop and Mode power management functions.
