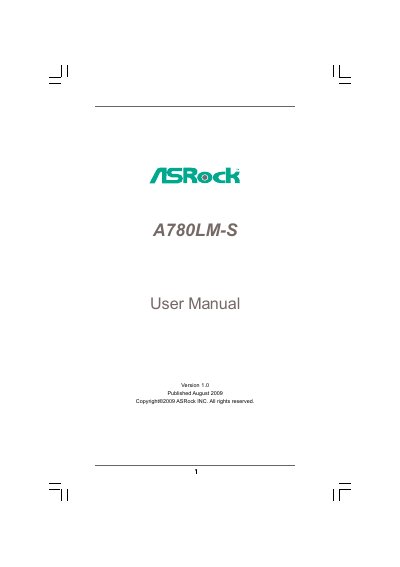

ASRock A780LM-S Motherboard User Manual

A780LM-S User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 59
File format: PDF
File size: 848 KB
Published: 05 June, 2012
Updated: 30 September, 2023
Model: A780LM-S
MD5 checksum: 87FF8FD7D86C80C6AC731AB4A1F4FDD4
PDF: ASRock A780LM-S Motherboard User Manual PDF

About this manual

The ASRock A780LM-S is a reliable Micro ATX form factor motherboard designed for Socket AM2+ / AM2 and AM3 processors. It features an AMD RS780L Northbridge and SB710 Southbridge chipset, integrated AMD Radeon HD 3000 graphics, and supports Dual Channel DDR2 memory up to 8GB. The board includes multiple expansion slots, SATAII connectors with RAID support, and various onboard headers for audio and USB connectivity.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
Installation
BIOS Setup Utility
Software Support

Specifications

Form Factor	Micro ATX Form Factor: 9.6-in x 7.2-in, 24.4 cm x 18.3 cm
CPU Support	Socket AM2+ / AM2 and AM3 processors
Chipset	Northbridge: AMD RS780L (760G); Southbridge: AMD SB710
Memory Support	2 x DDR2 DIMM slots; Max. capacity of system memory: 8GB
Graphics	Integrated AMD Radeon HD 3000 graphics; DX10 class iGPU
Audio Codec	ALC662 Audio Codec

Frequently asked questions

What operating systems are supported by this motherboard?

The motherboard supports Microsoft Windows XP, XP 64-bit, Vista, and Vista 64-bit.

Does the motherboard support RAID functions?

Yes, the SATAII connectors support RAID configurations including RAID 0, RAID 1, and RAID 10.

What is the maximum shared memory size for the integrated graphics?

The maximum shared memory size is defined by the chipset vendor but can be up to 512MB.

Download PDF (848 KB)
