This document introduces the features and performance of the ASRock A55DEL motherboard, including its reliability, stability, and excellent performance.
This document serves as an installation guide for the ASRock A55DEL motherboard. It provides step-by-step instructions for installing the board into a computer case, connecting power supplies, and attaching peripheral devices such as drives and fans.

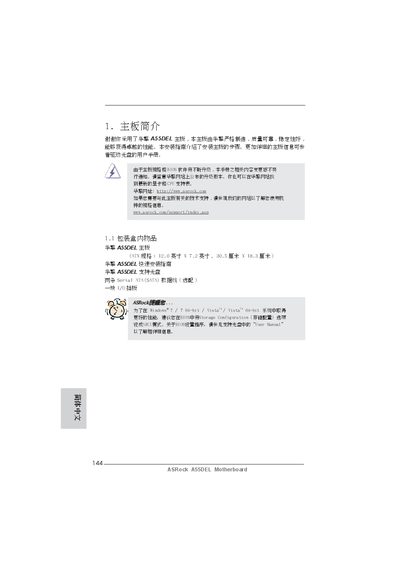

The manual also details how to configure the system using the BIOS setup utility, including CPU settings, memory configuration, and storage options like AHCI mode. Additionally, it explains how to clear CMOS data via jumper settings to reset system parameters. This manual is written in Chinese.
| Form Factor | ATX (12.0 inch x 7.2 inch) |
|---|---|
| CPU Socket | FM1 |
| Chipset | AMD A55 FCH (Hudson-D2) |
| Onboard Audio | Realtek ALC662 (5.1 Channel) |
| Onboard LAN | Gigabit (10/100/1000 Mb/s) |
| BIOS Type | 32Mb AMI BIOS (UEFI Legal) |
It is recommended to set the Storage Configuration option to AHCI mode in the BIOS.
Remove power, wait 15 seconds, and short-circuit pins 2 and 3 of the CLRCMOS1 jumper for 5 seconds.
Yes, the SATA connectors support RAID modes including RAID 0, RAID 1, and RAID 10.
