ASRock H61M-ITX Motherboard is a mini motherboard that supports third-generation and second-generation Intel Core i7/i5/i3 processors and supports Intel Rapid Start Technology and Intel Smart Connect Technology.
This guide introduces the ASRock H61M-ITX Mini‑ITX motherboard, its key features, and the components included in the packaging. It explains how to install the board, connect power and peripherals, and configure BIOS settings for optimal performance.

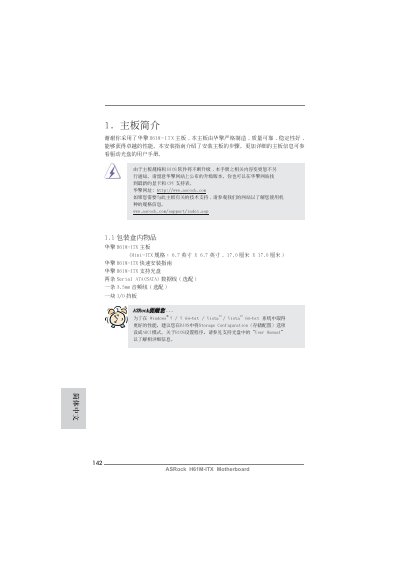

The document also lists detailed technical specifications, supported CPUs, memory options, expansion slots, I/O connectors, audio and networking features, as well as safety warnings and troubleshooting procedures such as CMOS reset and BIOS updates. This manual is written in Chinese.
| Form factor | Mini‑ITX (6.7" x 6.7") |
|---|---|
| Capacitor type | 100% Japanese solid capacitors |
| CPU socket | LGA1155 |
| Supported CPUs | 2nd and 3rd‑gen Intel Core i7/i5/i3 |
| Chipset | Intel H61 |
| Memory type | DDR3 (dual‑channel, non‑ECC, un‑buffered) |
| Maximum memory | 16 GB |
| PCIe slot | 1 × PCI Express 3.0 x16 (blue) |
| SATA ports | 3 × SATA2 3.0 Gb/s (NCQ, AHCI, hot‑plug) |
| Audio codec | Realtek ALC887 7.1‑channel |
| LAN controller | Realtek RTL8111E Gigabit Ethernet |
| USB 3.0 controller | 2 × ASMedia ASM1042 |
| BIOS size | 32 Mb AMI BIOS |
It supports 2nd‑generation (Sandy Bridge) and 3rd‑generation (Ivy Bridge) Intel Core i7, i5, and i3 processors using the LGA1155 socket.
The board has two DDR3 DIMM slots and can accommodate up to 16 GB of non‑ECC, un‑buffered DDR3 memory (1600/1333/1066).
There are three SATA2 ports offering up to 3.0 Gb/s transfer speed, with support for NCQ, AHCI, and hot‑plug operation.
