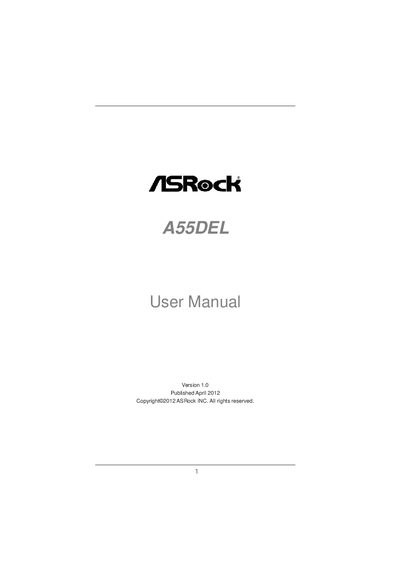

ASRock A55DEL Motherboard User Manual

A55DEL User Manual is a document that describes the features and characteristics of the ASRock A55DEL motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 68
File format: PDF
File size: 1.2 MB
Published: 06 June, 2012
Updated: 01 October, 2023
Model: A55DEL
MD5 checksum: AFB2B9DC828E280793FF1FEE6A93BC17
PDF: ASRock A55DEL Motherboard User Manual PDF

About this manual

The ASRock A55DEL is an ATX form factor motherboard designed for AMD Socket FM1 processors. It features a UMI-Link GEN2 chipset with dual-channel DDR3 memory support up to 16GB and supports AMD Quad CrossFireX, CrossFireX, and Dual Graphics technologies.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
I/O Panel
CPU Installation
Memory Modules Installation
Expansion Slots
UEFI Setup Utility
Software Support

Specifications

Form Factor	ATX Form Factor: 12.0-in x 7.2-in, 30.5 cm x 18.3 cm
CPU Socket	Socket FM1
Memory Type	DDR3
Max Memory Capacity	16GB
Graphics Support	AMD Radeon HD 65XX/64XX graphics
Audio Codec	Realtek ALC662 Audio Codec
LAN Controller	Realtek RTL8111E

Frequently asked questions

What operating systems are supported?

The motherboard is compliant with Microsoft Windows 7, Vista, XP SP3, and their 64-bit versions.

What is the maximum memory capacity?

The maximum system memory capacity for this motherboard is 16GB.

Download PDF (1.2 MB)
