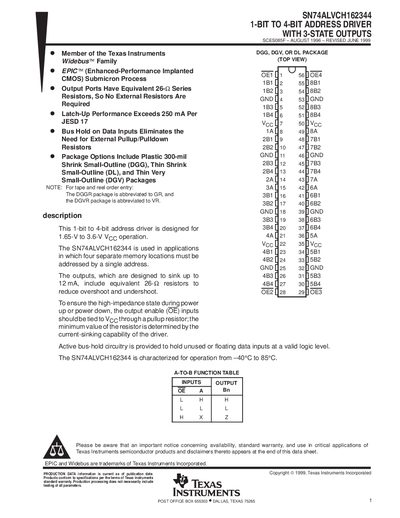

This datasheet provides detailed information on the SN74ALVCH162344, including its operating voltage range, output current, and packaging.
The SN74ALVCH162344 1‑bit to 4‑bit address driver provides three‑state outputs with integrated 26‑Ω resistors to reduce overshoot and undershoot. It includes active bus‑hold circuitry and can sink up to 12 mA per output, eliminating the need for external pull‑up or pull‑down resistors.
Electrical specifications cover a supply voltage range of 1.65 V to 3.6 V, continuous output current up to 12 mA, and operation over a temperature range of –40 °C to 85 °C. The device is offered in several Small‑Outline packages (DGG, DGV, DL) with documented thermal impedance values.
| Operating temperature range | –40 °C to 85 °C |
|---|
The device is rated for –40 °C to 85 °C.
