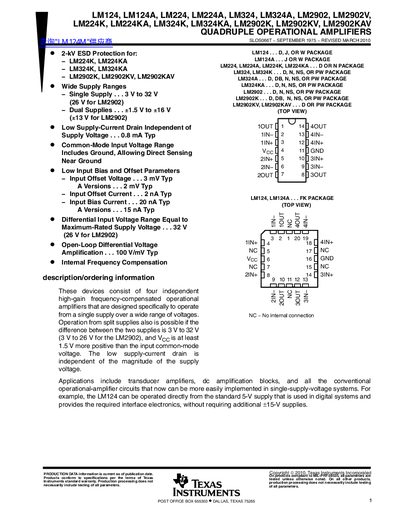

The LM124 series is a quadruple high-gain frequency-compensated operational amplifier designed for single-supply operation over a wide range of voltages. It features 2kV ESD protection, wide supply ranges, low supply-current drain, large common-mode input voltage range, low input bias and offset parameters, large differential input voltage range, and internal frequency compensation.
The LM124/LM224/LM324/LM2902 family consists of four independent, high‑gain, frequency‑compensated operational amplifiers that can operate from a single supply ranging from a few volts up to 32 V (26 V for the LM2902). The devices are suitable for transducer amplifiers, DC amplification blocks, and other conventional op‑amp circuits.
The document lists detailed ordering options, package types, absolute maximum ratings, and typical electrical parameters such as input offset voltage, bias currents, and open‑loop gain. It also includes land‑pattern data for PCB design and an important notice about product warranties and usage restrictions.
| Supply voltage range (single supply) | 3 V to 32 V (26 V for LM2902) |
|---|---|
| Maximum‑rated supply voltage | 32 V (26 V for LM2902) |
| Input offset voltage (typical) | 3 mV |
| Input offset current (typical) | 2 nA |
| Input bias current (typical) | 20 nA |
| Open‑loop gain | 100 V/mV (typical) |
| Operating temperature range (full range) | -55 °C to 125 °C (LM124), -25 °C to 85 °C (LM224), 0 °C to 70 °C (LM324) |
The LM124 series can operate from a single supply of 3 V up to 32 V (26 V for the LM2902 variant).
Typical input offset voltage is 3 mV.
