AK-SATA-030DL is a SATA data cable produced by ASSMANN Electronics, Inc.
The AK‑SATA‑030DL is a serial ATA signal cable with a PVC jacket, red color (Pantone 200C), and a 26 AWG conductor. The cable complies with RoHS and includes detailed mechanical dimensions and material specifications.

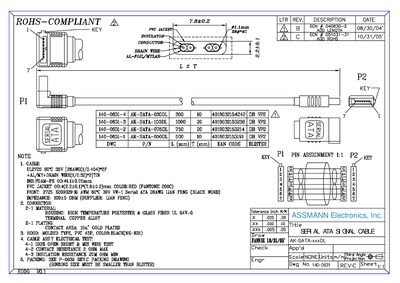

Electrical characteristics include a characteristic impedance of 100 ± 5 Ω, a maximum contact resistance of 2 Ω, and a minimum insulation resistance of 20 MΩ. The connector type is listed as LY, and the cable undergoes 100 % open/short and mis‑wire testing, with documented packing instructions provided in the accompanying drawing.
| Cable color | RED (PANTONE 200C) |
|---|---|
| Impedance | 100 ± 5 Ω |
| Contact resistance (max) | 2 Ω |
| Insulation resistance (min) | 20 MΩ |
| Jacket material | PVC |
| Conductor gauge | 26 AWG |
The cable has a characteristic impedance of 100 ± 5 Ω.
The maximum contact resistance is 2 Ω.
The insulation resistance must be at least 20 MΩ.
