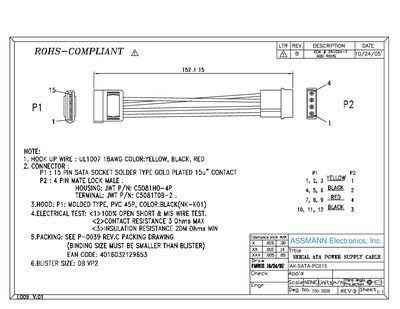

This document describes the AK‑SATA‑PC015 serial ATA power supply cable. It lists the required hook‑up wire (UL1007 18 AWG), connector types for P1 (15‑pin SATA socket, gold‑plated) and P2 (4‑pin mate‑lock male), and the housing, terminal, and hood specifications.
Electrical test parameters are given, including a maximum contact resistance of 3 Ω and a minimum insulation resistance of 20 MΩ. Packing details reference drawing P0039 REV.C, and the EAN code 4016032129653 is provided for identification.
| Hook up wire gauge | UL1007 18AWG |
|---|---|
| P1 connector type | 15‑pin SATA socket, gold‑plated contacts |
| P2 connector type | 4‑pin mate‑lock male |
| Contact resistance max | 3 Ω |
| Insulation resistance min | 20 MΩ |
Use UL1007 18 AWG wire.
The contact resistance must not exceed 3 Ω.
The insulation resistance must be at least 20 MΩ.
