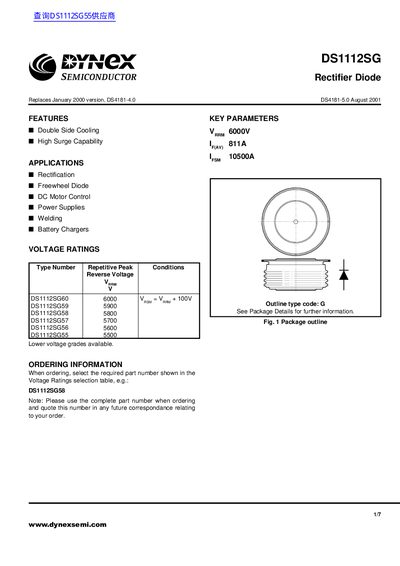

This document describes the features and applications of DS1112SG rectifier diode, including double side cooling and high surge capability.
The Dynex DS1112SG is a high‑power rectifier diode designed for applications such as motor control, power supplies, welding, and battery chargers. It features double‑side cooling and high surge capability, making it suitable for demanding industrial environments.
The document provides detailed electrical ratings (reverse voltage up to 6000 V, continuous forward current up to 811 A), surge ratings, thermal data, and package dimensions. Ordering information, clamping force specifications, and Power Assembly options are also included.
| Reverse Voltage (V_RRM) | 6000 V |
|---|---|
| Clamping Force | 12 kN +10% |
The reverse voltage rating for DS1112SG58 is 5800 V.
