The DS2107SY is a rectifier diode produced by Dynex Semiconductors. It features double-sided cooling and high surge capability. It can be used for rectification, freewheel diode, DC motor control, power supplies, welding and battery chargers.

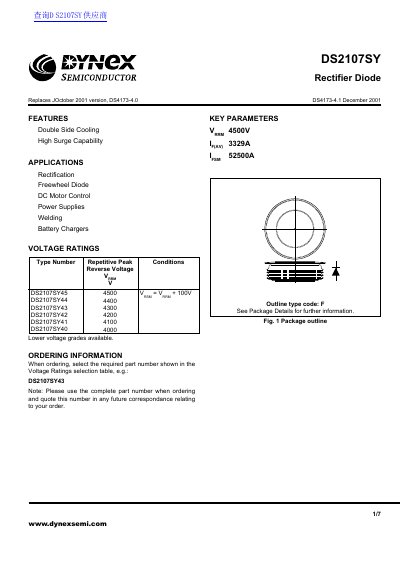

This document is a technical datasheet for the Dynex Semiconductor DS2107SY Rectifier Diode. The device features double-side cooling capabilities with a repetitive peak reverse voltage (VRRM) of 4500V and an average forward current (IF(AV)) of up to 3329A under specific conditions.
The datasheet provides detailed electrical characteristics, including surge ratings, thermal data for both single and double-side cooling configurations, and package details. It outlines applications such as rectification, freewheel diodes, DC motor control, and battery chargers.
| Repetitive Peak Reverse Voltage (VRRM) | 4500V |
|---|
The diode is suitable for rectification, freewheel diodes, DC motor control, power supplies, welding, and battery chargers.
The device supports double-side cooling and is also rated for single-side cooled (anode side) operation.
