This document describes the features and applications of the DCR3480B series double side cooled phase control thyristors.

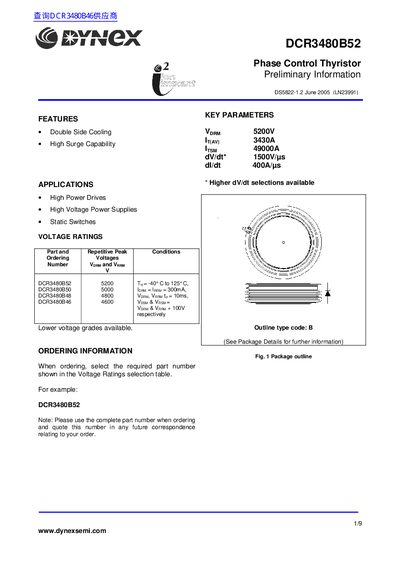

This document provides preliminary information and technical specifications for the Dynex DCR3480B52 Phase Control Thyristor. Key features include double side cooling capability and high surge capability, making it suitable for high power drives, high voltage power supplies, and static switches. The device operates with a maximum forward voltage of 5200V and a mean on-state current of 3430A.
| Forward Voltage (Vorm) | 5200V |
|---|---|
| Surge current (Ism) | 49000A |
| Max. linear rate of rise of off-state voltage (dv/dt) | 1500V/us |
| Rate of rise of on-state current (di/dt) | 400A/us |
It is designed for high power drives, high voltage power supplies, and static switches.
The maximum forward voltage rating is 5200V.
Yes, the device features double side cooling capability.
