DS2101SY is a double-sided cooled Zener diode produced by Dynex Semi. It has a maximum reverse voltage of 1500V, a rated average forward current of 7810A, and a rated peak forward current of 79000A.

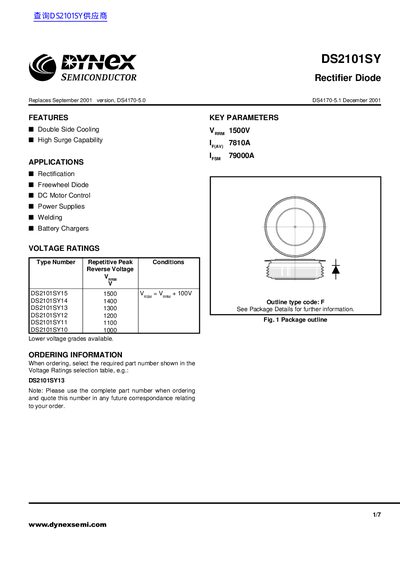

This document is a datasheet for the Dynex Semiconductor DS2101SY Rectifier Diode, designed for high surge capability and double side cooling applications. It provides detailed specifications including voltage and current ratings, thermal data, and mechanical details for engineers and designers.
| Repetitive Peak Reverse Voltage | 1500V |
|---|---|
| Mean Forward Current (Double Side Cooled) | 7810A |
| Surge Forward Current | 79000A |
| Nominal Weight | 1600g |
The DS2101SY is suitable for rectification, freewheel diode, DC motor control, power supplies, welding, and battery chargers.
The clamping force is 50kN with a tolerance of ±10%.
