DS2004SF is a dynexsemi 2800V diode with double side cooling and high surge capability.

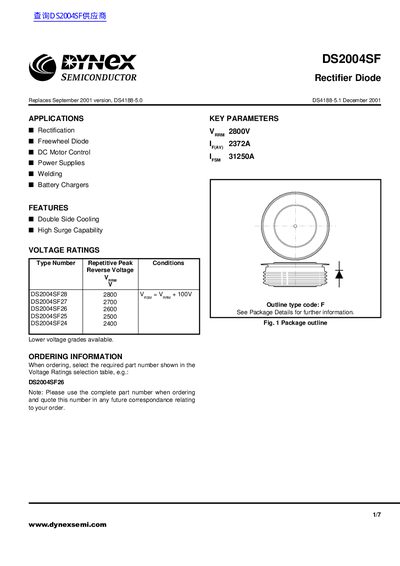

This document is a datasheet for the Dynex DS2004SF family of rectifier diodes. The device is designed for high surge capability and features double side cooling to manage thermal performance in demanding applications.
The diode is suitable for a wide range of applications including rectification, freewheeling in DC motor control, power supplies, welding, and battery chargers. It is available in various voltage ratings from 2400V to 2800V.
| Reverse Voltage | 2400V to 2800V |
|---|---|
| Mean forward current (Double Side Cooled) | 2372 A |
| Continuous forward current (Double Side Cooled) | 3352 A |
| Package outline type code | F |
The diode is used for rectification, freewheel diode, DC motor control, power supplies, welding, and battery chargers.
Yes, the device features double side cooling and is available in both double side and single side cooled configurations.
The storage temperature range is from -55°C to 180°C.
