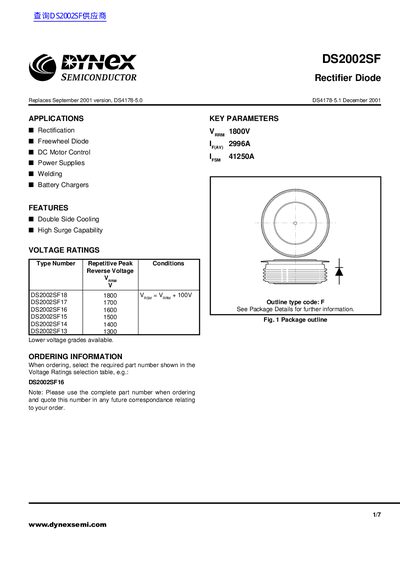

This document describes the features and characteristics of the DS2002SF rectifier diode, including double side cooling and high surge capability. It is mainly used in rectification, freewheel diode, DC motor control, power supplies, welding, and battery charger applications.
This document provides comprehensive technical data for the DS2002SF Rectifier Diode manufactured by Dynex Semiconductor. It covers key parameters including voltage ratings up to 1800V, current capabilities ranging from 3644A to 4707A depending on cooling conditions, and surge ratings of 41.25kA.
The datasheet details the device's thermal performance under both single-side and double-side cooled configurations, providing thermal resistance values and maximum junction temperatures. It also includes mechanical data such as clamping force requirements and package dimensions for type code F.
| Repetitive Peak Reverse Voltage (VRRM) | 1800 V |
|---|---|
| Maximum Junction Temperature (Forward) | 185 °C |
| Clamping Force | 19.5 kN |
It is suitable for rectification, freewheeling in motor control, power supplies, welding, and battery chargers.
The package outline type code for this diode is F.
