The BZV85 series is a medium-power voltage regulator diode with a maximum total power dissipation of 1.3W, an approximate ±5% tolerance series, and a nominal working voltage range of 3.6V to 75V. It is suitable for voltage stabilization.

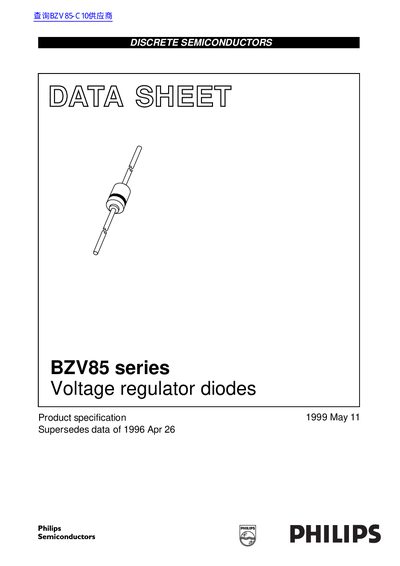

The Philips BZV85 series consists of medium‑power voltage regulator diodes available in hermetically sealed glass SOD66 (DO‑41) packages. The series covers nominal working voltages from 3.6 V to 75 V and is intended for stabilization applications.
Key specifications include a maximum power dissipation of 1.3 W, continuous forward current of 500 mA, and thermal resistances of 110 K/W (junction‑to‑tie‑point) and 175 K/W (junction‑to‑ambient). The datasheet also provides limiting values, electrical characteristics, and mechanical dimensions.
| Maximum power dissipation | 1.3 W |
|---|---|
| Continuous forward current | 500 mA |
| Package type | Hermetically sealed glass SOD66 (DO‑41) |
| Operating temperature range (junction) | 25 °C to 150 °C |
The maximum power dissipation is 1.3 W.
The continuous forward current rating is 500 mA.
They are supplied in a hermetically sealed glass SOD66 (DO‑41) package.
