Am28F020A is a 2 Megabit Flash memory organized as 256 Kbytes of 8 bits each. It features high performance, low power consumption, compatibility with JEDEC standard, and programmable erase.

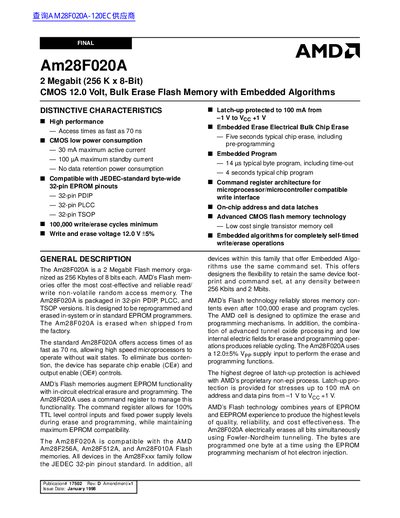

The AM28F020A is a 2 Megabit (256 K × 8‑bit) CMOS flash memory that can be erased in‑system with a 12 V bulk erase voltage. It features embedded erase and program algorithms that simplify timing and verification, providing typical chip erase in five seconds and byte programming in four seconds at room temperature.
The device is offered in 32‑pin PDIP, PLCC, and TSOP packages and supports commercial, industrial, and extended temperature ranges. It uses standard TTL‑level control inputs, with separate chip‑enable (CE#) and output‑enable (OE#) pins, and includes latch‑up protection up to 100 mA.
| Access time | 70 ns |
|---|---|
| Maximum active current | 30 mA |
| Maximum standby current | 100 µA |
| Write/erase cycles | 100,000 minimum |
| Write/erase voltage | 12.0 V ±5% |
| Package types | 32‑pin PDIP, PLCC, TSOP |
| Commercial temperature range | 0 °C to +70 °C |
| Industrial temperature range | 40 °C to +85 °C |
| Extended temperature range | -55 °C to +125 °C |
The typical room‑temperature programming time is four seconds.
A full device bulk erase takes about five seconds at room temperature, including pre‑programming.
The device is rated for a minimum of 100,000 write/erase cycles.
