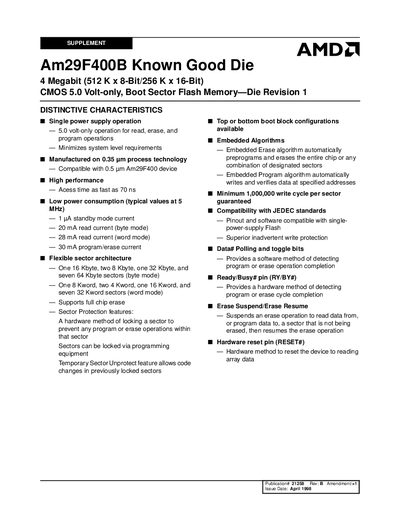

This document describes the features and characteristics of Am29F400B Known Good Die 4 Megabit CMOS 5.0 Volt-only, Boot Sector Flash Memory—Die Revision 1, including single power supply operation, high performance, low power consumption, flexible sector architecture, embedded algorithms, etc.
The document details the specifications of the Am29F400B Known Good Die (KGD), which is manufactured on a 0.35 um process technology. It features single power supply operation, sector protection, and hardware reset capabilities.
Key characteristics include access times as fast as 70 ns, low power consumption in standby mode, and compatibility with JEDEC standards. The die supports embedded algorithms for automatic preprogramming and erasing of the entire chip or designated sectors.
| Operating Voltage | 5.0 Volt-only |
|---|---|
| Maximum Access Time (70ns option) | 70 ns |
| Standby Current (typical at 5MHz) | 1 mA |
| Read Current (byte mode, typical at 5MHz) | 20 mA |
| Program/Erase Current | 30 mA |
| Minimum Write Cycles per Sector | 1,000,000 |
The Am29F400B is manufactured using AMD's 0.35 um process technology.
No, it operates with a single 5.0 volt supply; a 12.0 V Vpp is not required.
Yes, it is designed to be programmed in-system with a standard system 5.0 volt supply.
