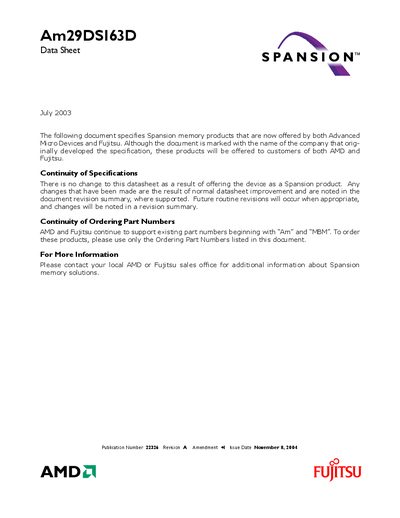

This is a datasheet of Spansion memory products, introducing the features and characteristics of the products.
The document is a technical datasheet for the Am29DS163D family of 16 megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS flash memory devices manufactured on a 0.23 micron process technology. These devices operate at a single 1.8 volt supply and feature simultaneous read/write operations by dividing the memory space into two banks, allowing zero latency between read and write cycles.
| Capacity | 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) |
|---|---|
| Voltage | 1.8 Volt-only |
| Access Time | 100 ns / 120 ns |
| Package Type | 48-ball FBGA |
| Process Technology | 0.23 micron |
The device requires only a single 1.8 volt power supply for both read and write functions.
Yes, it is designed to be programmed in-system with the standard 1.8 volt Vcc supply.
The device offers at least 20 years of data retention even at temperatures up to 125°C.
