The Am28F010A is a 1M 8-bit CMOS 12V flash memory from AMD. It features 30 mA maximum active current, 100 µA maximum standby current, 12.0 V ±5% write and erase voltage, 5 seconds typical chip erase, 14 µs typical byte program, and 4 seconds typical chip program.

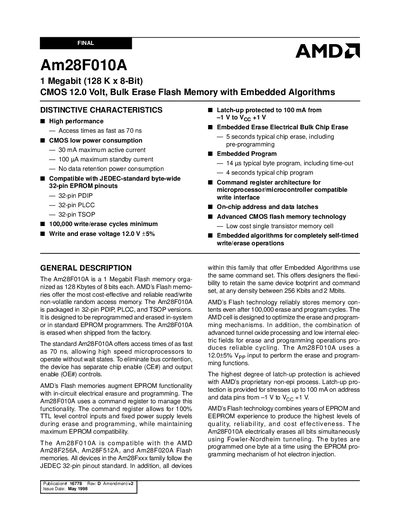

The document describes the Am28F010A, a 1 Megabit (128 K x 8-Bit) Flash memory device featuring Embedded Algorithms for self-timed write/erase operations. It is compatible with JEDEC-standard byte-wide 32-pin EPROM pinouts and available in PDIP, PLCC, and TSOP packages.
| Capacity | 1 Megabit (128 K x 8-Bit) |
|---|---|
| Access Time | 70 ns to 200 ns |
| Max Active Current | 30 mA |
| Max Standby Current | 100 uA |
| Write/Erase Cycles | 100,000 minimum |
| Operating Voltage (Vcc) | 5.0 V (+/- 10%) |
| Program/Erase Voltage (Vpp) | 12.0 V +/- 15% |
The typical room temperature programming time for Embedded Program is two seconds.
A typical chip erase, including pre-programming, takes five seconds at room temperature.
Yes, it is designed to be reprogrammed and erased in-system or in standard EPROM programmers.
