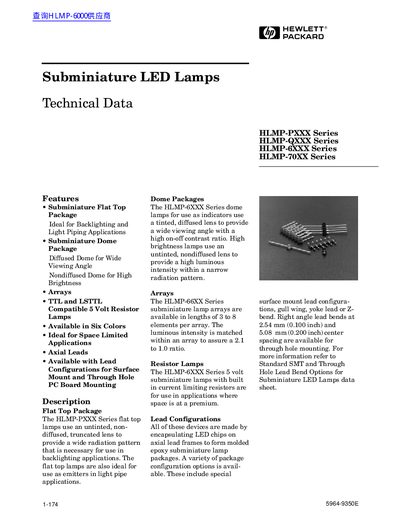

The document describes the features and characteristics of the HLMP series LED lamps, including different package forms, viewing angles, brightness, and sizes. This series is suitable for applications such as indicators, lamp arrays, and resistor lamps.
The HLMP-PXXX series includes flat‑top and dome subminiature LED lamps, arrays, and 5 V resistor lamps. Packages are offered with axial leads, surface‑mount, and through‑hole configurations for space‑limited applications.
The datasheet provides absolute maximum ratings, electrical and optical characteristics, and detailed package dimensions for each lamp type, along with guidance on mounting and thermal considerations.
