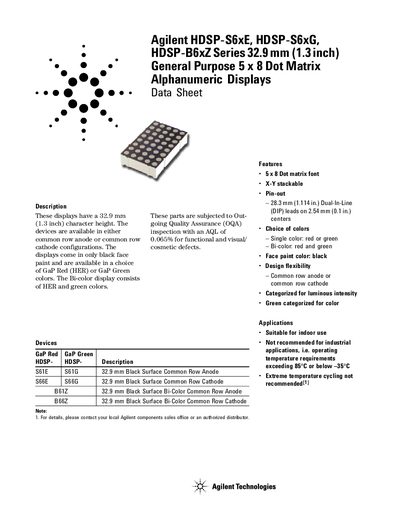

This datasheet provides detailed information on the Agilent HDSP-S6xE, HDSP-S6xG, HDSP-B6xZ series 32.9mm (1.3 inch) general purpose 5 x 8 dot matrix alphanumeric displays.
These 32.9 mm (1.3 in) alphanumeric displays are offered in single‑color GaP Red, GaP Green, or bi‑color (red/green) versions. They use a 5×8 dot matrix font, are X‑Y stackable, and are available with common‑row anode or common‑row cathode configurations. The devices are supplied with a black face paint and are intended for indoor use, not for industrial temperature extremes.
The datasheet provides package dimensions for single‑color and bi‑color parts, detailed pin‑out diagrams for each configuration, and absolute maximum ratings such as 65 mW average power per dot, up to 100 mA peak forward current, and an operating temperature range of –35 °C to +85 °C. Cleaning and soldering recommendations, reliability notes, and contact information for Agilent worldwide support are also included.
| Character height | 32.9 mm (1.3 in) |
|---|---|
| Dot matrix | 5 x 8 |
| Package type | 28.3 mm DIP, 2.54 mm pitch |
| Operating temperature | -35 °C to +85 °C |
| Average power per dot | 65 mW |
| Reverse voltage per dot | 3 V |
| Tolerance | +0.25 mm unless otherwise stated |
The displays operate from –35 °C up to +85 °C.
The package is a 28.3 mm (1.114 in) DIP with pins spaced 2.54 mm (0.1 in) apart.
