FJP13007 is a high voltage switch mode application NPN silicon transistor produced by Fairchild Semiconductor Corporation. It has high speed switching characteristics and is suitable for switching regulators and motor control.
The Fairchild FJP13007 is a high‑voltage, high‑speed NPN silicon transistor designed for switch‑mode power applications, including regulators and motor control. It is supplied in a TO‑220 package and offers robust voltage and current handling capabilities.

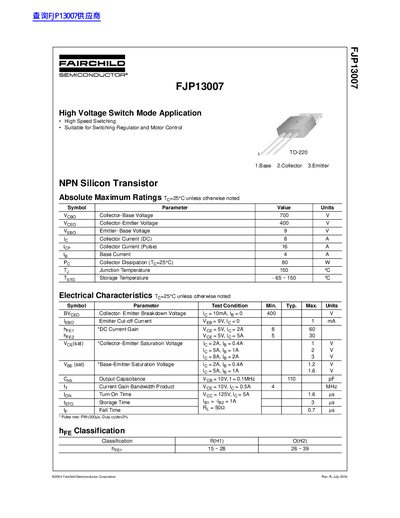

The datasheet provides absolute maximum ratings, detailed electrical characteristics, typical performance curves, and mechanical dimensions, along with legal notices and product status information.
| Collector‑Base Voltage (V CBO) | 700 V |
|---|---|
| Collector‑Emitter Voltage (V CEO) | 400 V |
| Emitter‑Base Voltage (V EBO) | 9 V |
| Collector Current (DC) | 8 A |
| Collector Current (Pulse) | 16 A |
| Base Current (I B) | 4 A |
| Power Dissipation (P D) | 80 W |
| Junction Temperature (T J) | 150 °C |
| Storage Temperature (T sta) | -65 °C to 150 °C |
| Output Capacitance (C O) | 110 pF |
| Current‑Gain Bandwidth Product (f T) | 4 MHz |
| Turn‑On Time | 1.6 ps |
The device can withstand up to 400 V between collector and emitter.
It is rated for a continuous collector current of 8 A.
The transistor can dissipate up to 80 W when the case is at 25 °C.
The part is offered in a TO‑220 package.
