The SIL630 series inductors are a high energy storage, low DCR SMD power inductors from DELTA Electronics. It features small size, low profile, high density mounting and high energy storage. It is ideal for power source circuits, DC-DC converter, DC-AC inverters inductor application.
The SIL630 is a small, low‑profile (5.6 mm × 5.6 mm, 3.0 mm max height) magnetically shielded SMD power inductor designed for high‑density mounting. It offers high energy storage and low DCR, making it suitable for power‑source circuits, DC‑DC converters, and DC‑AC inverters.

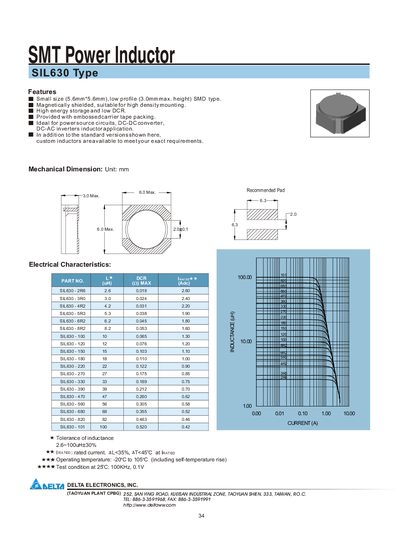

Mechanical dimensions, electrical characteristics, and recommended pad layout are listed, along with tolerance, rated current, and operating temperature ranges. Custom inductors are also available to meet specific requirements.
| Size (L×W) | 5.6 mm × 5.6 mm |
|---|---|
| Maximum Height | 3.0 mm |
| Inductance Tolerance | ±30% (2.6‑100 µH) |
| Operating Temperature | -20 °C to 105 °C |
The SIL630 measures 5.6 mm × 5.6 mm with a maximum height of 3.0 mm.
It operates from –20 °C up to 105 °C.
Inductance tolerance is ±30% for values between 2.6 µH and 100 µH.
It is suitable for power‑source circuits, DC‑DC converters, and DC‑AC inverters.
