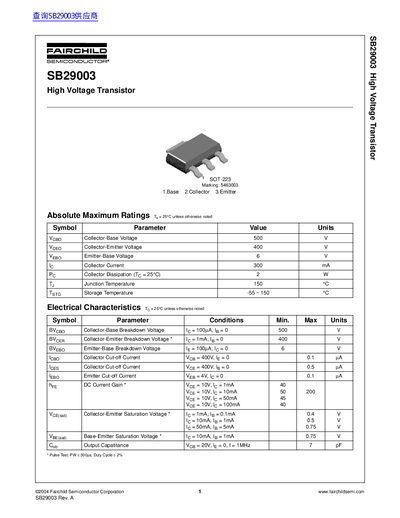

Absolute maximum ratings, electrical characteristics, typical values and symbol parameters of SB29003 high voltage transistor.
The SB29003 is a high‑voltage transistor offered in an SOT‑223 package. The datasheet lists absolute maximum ratings, electrical parameters and typical performance curves for design reference.
Mechanical dimensions, trademark information and product status definitions are also provided, along with Fairchild’s standard disclaimer and life‑support policy statements.
| Collector‑Base Voltage (V CBO) | 500 V |
|---|---|
| Collector‑Emitter Voltage (V CEO) | 400 V |
| Emitter‑Base Voltage (V EBO) | 6 V |
| Maximum Collector Current (I C) | 300 mA |
| Collector Power Dissipation (P C) | 2 W |
| Maximum Junction Temperature (T J) | 150 °C |
| Storage Temperature Range | -55 °C to 150 °C |
| DC Current Gain (hFE) typical range | 40 – 200 |
| Package Type | SOT‑223 |
The maximum collector‑emitter voltage is 400 V.
The device can be stored from –55 °C up to 150 °C.
It is supplied in an SOT‑223 surface‑mount package.
The transistor can handle up to 300 mA of collector current.
