MOTOROLA 1SM5.0 A thru 1SMC170 A TECHNICAL DATA

Q: What is the standard Zener voltage range for this series?

The standard Zener voltage range is 5.0 to 170 V.

Q: What is the peak power rating of these devices?

The device has a 1500 Watt peak power rating.

Q: Can these components be mounted on the bottom of a circuit board?

Yes, the package is designed for top side or bottom circuit board mounting.

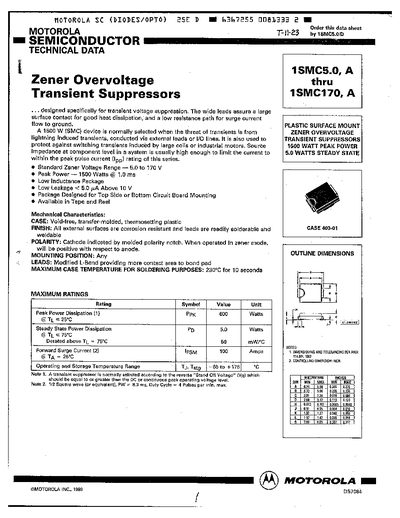

MOTOROLA 1SM5.0 A thru 1SMC170 A TECHNICAL DATA - cover page

Brand: Motorola
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 217 KB
Published: 05 June, 2012
Updated: 05 June, 2012
MD5 checksum: 294460066BD1024A8C4BA8D902A55605
PDF: MOTOROLA 1SM5.0 A thru 1SMC170 A TECHNICAL DATA PDF

About this manual

This datasheet covers the Motorola 1SMC series of Zener Overvoltage Transient Suppressors, designed specifically for protecting against lightning and switching transients. These devices feature a wide voltage range from 5.0V to 170V and are available in a low inductance package suitable for top side or bottom circuit board mounting.

What's inside

Product Description
Maximum Ratings
Electrical Characteristics
Pulse Rating Curve
Package Dimensions
Abbreviations and Symbols

Specifications

Peak Power Dissipation	600 Watts @ Tr = 25°C
Steady State Power Dissipation	5.0 Watts @ TL < 75°C
Forward Surge Current	100 Amps @ Ta = 25°C
Operating Temperature Range	-65 to +175 °C
