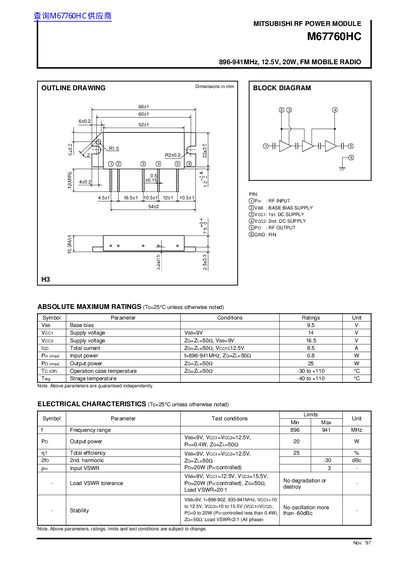

This datasheet provides detailed information of M67760HC RF power module, including package dimension, pin definition, electrical characteristics, absolute maximum ratings etc.
The M67760HC is a Mitsubishi RF power module designed for FM mobile radio applications. It operates in the 896‑941 MHz band and is powered from a 12.5 V supply, delivering up to 20 W of output power.
The datasheet provides absolute maximum ratings, electrical characteristics, and typical performance data, including bias voltages, current limits, efficiency, and temperature ranges for reliable operation in harsh environments.
| Frequency range | 896‑941 MHz |
|---|---|
| Maximum output power | 20 W |
| Base bias voltage (VeB) | 9.5 V |
| Supply voltage (Vec1) | 9 V |
| Storage temperature range | -40 °C to +110 °C |
It operates from 896 MHz to 941 MHz.
The module can deliver up to 20 W of output power.
