RM60DZ/CZ-M,-H is a medium power general purpose insulated type diode module produced by Mitsubishi Electric. Its average forward current is 60A and its repetitive peak reverse voltage is 400/800V.
The RM60DZ/CZ-M,-H is a medium‑power, general‑use insulated diode module from Mitsubishi. It is intended for AC and DC motor controllers, battery DC power supplies, and other general DC power equipment.

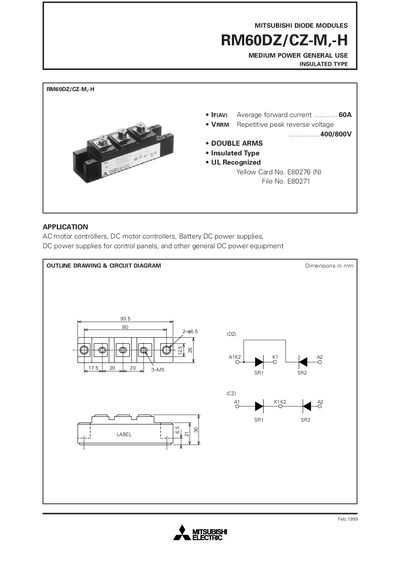

The datasheet lists absolute maximum ratings such as an average forward current of 60 A, repetitive peak reverse voltage of 400 V (800 V for the CZ version), and isolation voltage of 2500 V. Electrical characteristics, thermal impedance curves, and mechanical dimensions are also provided, along with mounting torque specifications and typical weight.
| Average forward current (IF avg) | 60 A |
|---|---|
| Isolation voltage (Vise) | 2500 V |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Typical weight | 160 g |
The module is rated for an average forward current of 60 A.
The isolation voltage is specified as 2500 V.
The typical weight is about 160 g.
