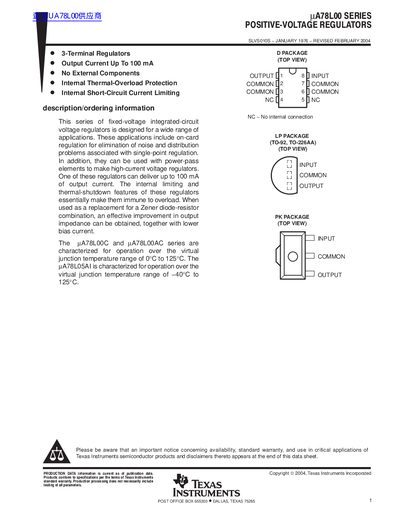

µA78L00C, µA78L00AC, µA78L05AI series are three-terminal regulators that can deliver up to 100 mA of output current. They do not require external components and have internal thermal overload protection and internal short-circuit current limiting features. These regulators can be used to eliminate noise and distribution problems associated with single-point regulation, and also with power-pass elements to make high-current voltage regulators.
The A78L00 series are fixed‑voltage positive‑voltage regulators designed for low‑noise, low‑impedance applications. They provide up to 100 mA of output current with internal thermal‑overload and short‑circuit protection.
The document includes ordering information, electrical characteristics, absolute maximum ratings, recommended operating conditions, mechanical package data and legal notices.
| Maximum output current | 100 mA |
|---|---|
| Output voltage range | 4.75 V to 20 V |
| Dropout voltage | 1.7 V |
The regulators can deliver up to 100 mA of output current.
They provide a regulated output from 4.75 V up to 20 V.
The typical dropout voltage is 1.7 V at 25 °C.
